Modular Air Handling Unit® (MAHU)

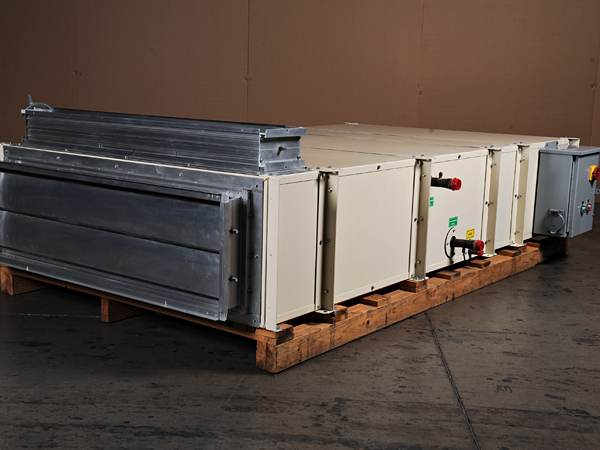

Modular Air Handling UnitThe MAHU line of fan coil units is a high quality, high performance, cost effective small air-handling unit. The MAHU is a highly customizable unit that brings modular specific components together in a unique operating system. The MAHU is made out of extremely high quality components that are typically reserved for commercial air handlers. For instance, the MAHU comes with a fan and a cabinet that can produce high profile static pressures in the low profile format of a traditional fan coil unit.

The MAHU has been designed for applications that demand the high quality components of an air handling unit along with a fan and cabinet that can produce high static pressures in the low profile format of a traditional fan coil unit. The technologically innovative design of the MAHU allows for a very low maintenance product that is perfectly suited for Mixed Air, 100% RA, 100% OSA, economizer applications, while meeting the most stringent engineering specifications.

Various Worldwide Applications:

Aircraft hangars
Call centers
Casinos
Clean rooms
Convention centers
Factories
Food processing plants
Gymnasiums
Hospitals
Indoor pools
Kitchens
Manufacturing facilities
Military bases
Mining facilities
Museums
Office buildings
Pharmaceutical labs
Prisons
Schools
Terminals
Textile factories
Theaters
Warehouses
Water treatment plants

Benefits and Features:

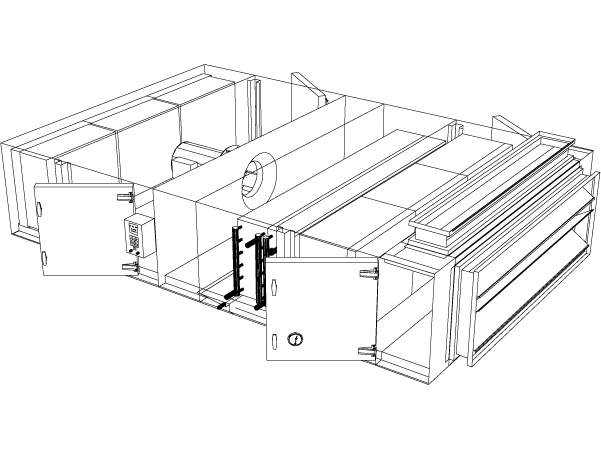

  • Modular design - can be split between any section
  • Low profile design suitable for ceiling or floor mounting
  • Indoor and outdoor units
  • Low-leak cabinet construction - less than 1% CFM cabinet leakage at a positive pressure of 6″WG TSP.
  • Complements UMPs larger Custom-Air range
  • Internally isolated direct drive plug fan for quiet operation and zero belt maintenance
  • 500 to 11,000 CFM @ up to 6.00″ TSP
  • 2” and 4” double wall construction, perforated or solid lined
  • 26 standard cabinet sizes
  • Inlet / Mixing modules – all duct locations available
  • Panel and box filters up to MERV 14
  • HW, CW, DX and steam coils available up to 10 rows deep
  • #304 SS double sloped drain pans
  • Gas or electric heat options
  • ETL listed and labeled in accordance with UL1995
